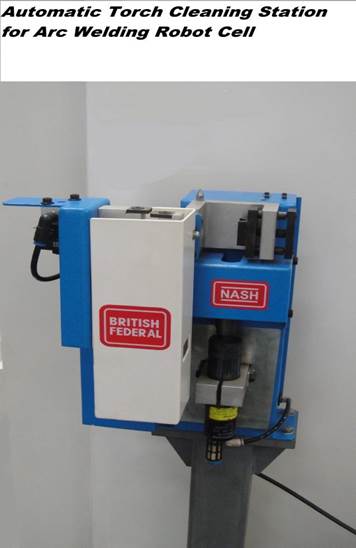

CO2 Torch Cleaning Station – SSC

SSC is automatic single station solution for spatter removal, spraying and wire cutting. It is ‘Plug and Start’ unit trouble free and occupies very little space. Overall size is 280 x 250 x 1000mm (height as required)

Torch Cleaning Station

· ‘SSC’ is suitable for all Robot Welding Torches

· Spatter removal cutter is suitable for heavy spatter removal effortlessly

· Nozzle is very well secured by Pneumatic 3 point contact clamp to ensure effortless spatter removal

Anti Spatter Spraying Unit

· Clean environment due to encapsuled spraying nozzle.

· Collecting pan for dirty residual oil. Maintains clean environments

· Welding Spatter adhesion substantially reduces with anti spatter fluid which also helps in extending service intervals.

· Refitting of anti spatter fluid and disposal of residual oil by effortless swapping of the bottles

Wire Cutting Station

· Defined wire stick out for TCP measurement

· Shear type long life cutters
