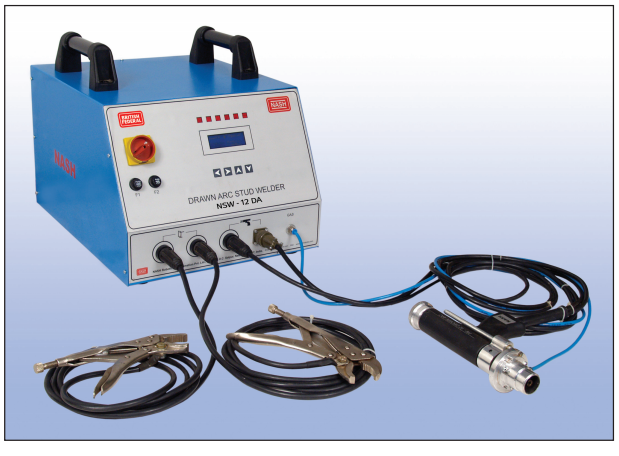

DRAWN ARC STUD WELDER
NSW - 12 DA
|
|
Features
NASH ‘NSW – 12 DA Drawn Arc Stud Welder is one of the most advanced and versatile microprocessor based state-of-the art technology in drawn arc stud welding.The various facilities incorporated in the controller provide precise control of the welding parameters for the achieving a good quality weld. The entire programming being carried out by four keys and a four line 20 – character backlit LCD display.

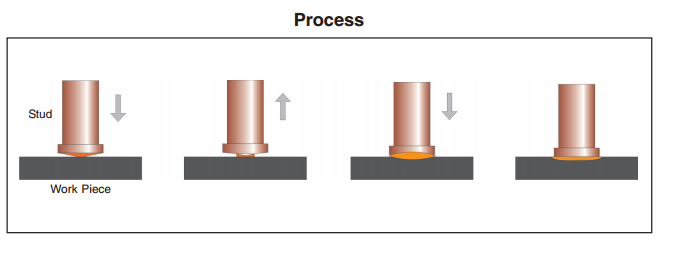

The NASH ‘Drawn Arc Stud Welder’ is working with the principle of short-cycle drawn arc stud welding. You can weld pins and threaded / non threaded studs of M3 – M12 or Ø 3 – 11 mm as well as numerous fastening elements made of steel and stainless steel. It is also possible to weld fastening elements made of aluminum and brass depending on the respective requirements.

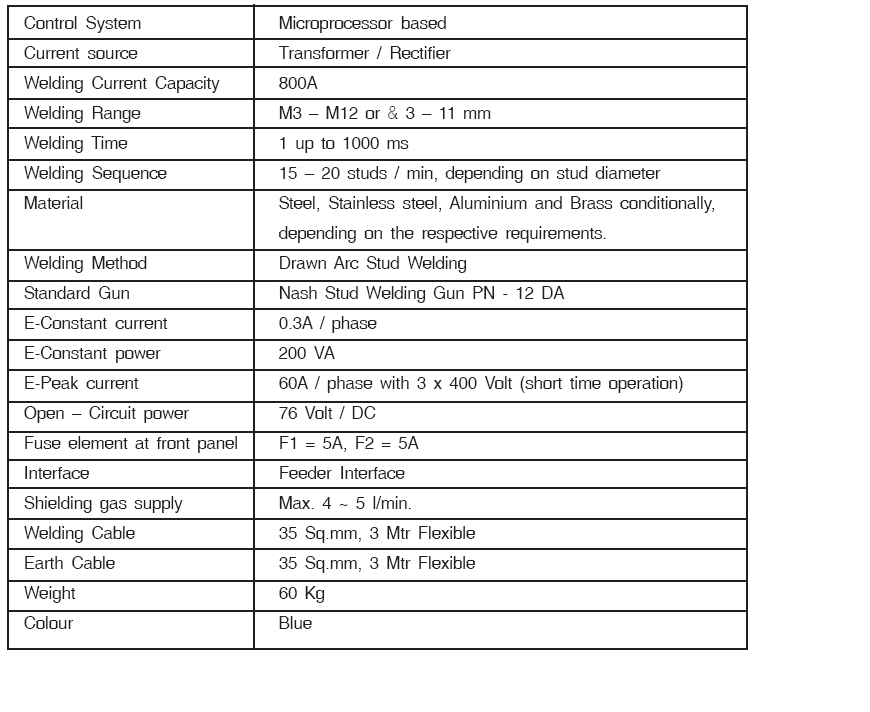

Specification
Subject to technical changes from the manufacturer
